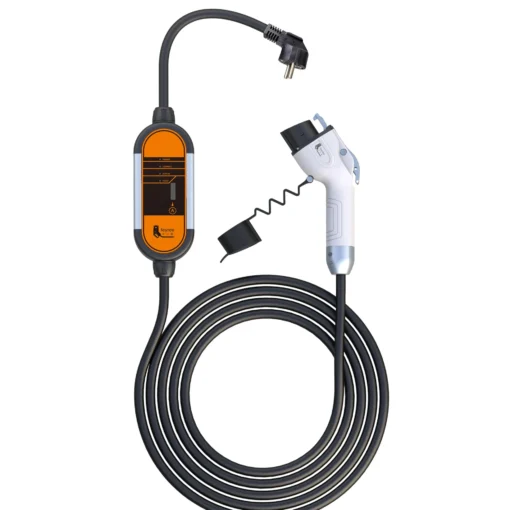

Portable EV Charger Wallbox 16A Type1 j1772 Charging Cable Type2 Cord IEC62196 Schuko Plug Electric Car Charging Station

Fast Charging: Designed to make EV charging quick and effortless.Utilizing the standard IEC 62196-2 charging protocol, this charging cable is compatible with all electric cars and plug-in hybrid. Compact and durable, it is the perfect charging cable for home use and with a 16.4ft cable that is long enough for most driveways or garages.

Portable Charger: The EV charger portable box would allow you to charge your electric vehicle，If you want to switch the current, please set it before plugging the charger into the car. Level 2 charging cable will offer you 3X the charging speed in comparison to your car’s original charger. Boosting 250V and up to 16A, it provides a rapid charging rate of 3.5kw/hour.

Well-designed: The special socket effectively prevents dust from entering the EV charger interface. 5M cable is sturdy and durable, suitable for use in various parking lots or family garages. It can be hung on the holder after use, which is flexible and convenient. When fully charged, the device will automatically power off. In case of emergency use, press the reset button to turn off the device.

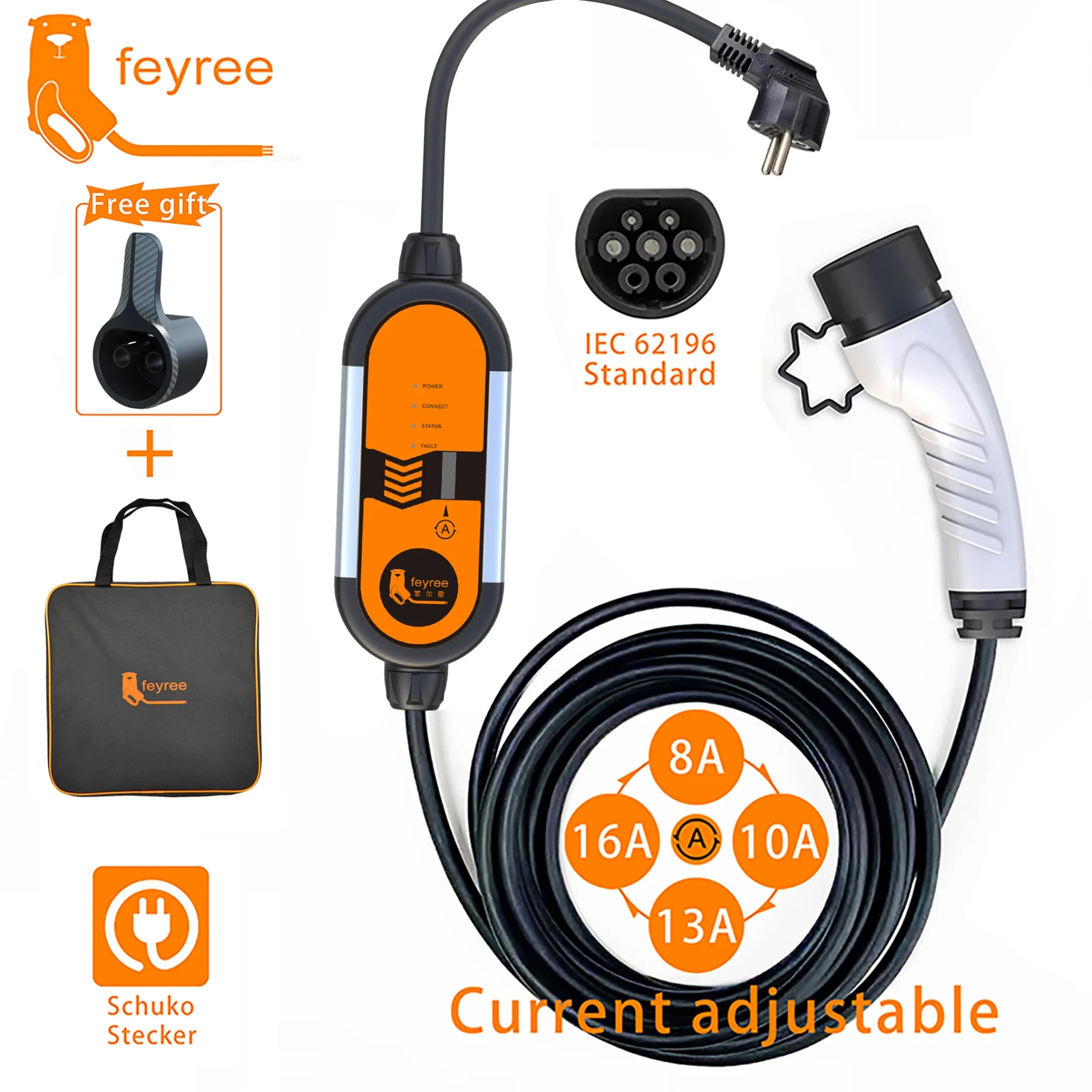

Various functions: Level 2 EV charger maximum working amperage: 16A. This EV charger Amps adjustable(8A/10A/13A/16A), which can realize a variety of charging options such as fast charging and slow charging! The EV charger offers four current charging mode. Support a wide range of voltage 165V AC to 270V AC, Can be used in any situation and when using max power (3.5kw), Electric cars can be fully charged in 6-12 hours.

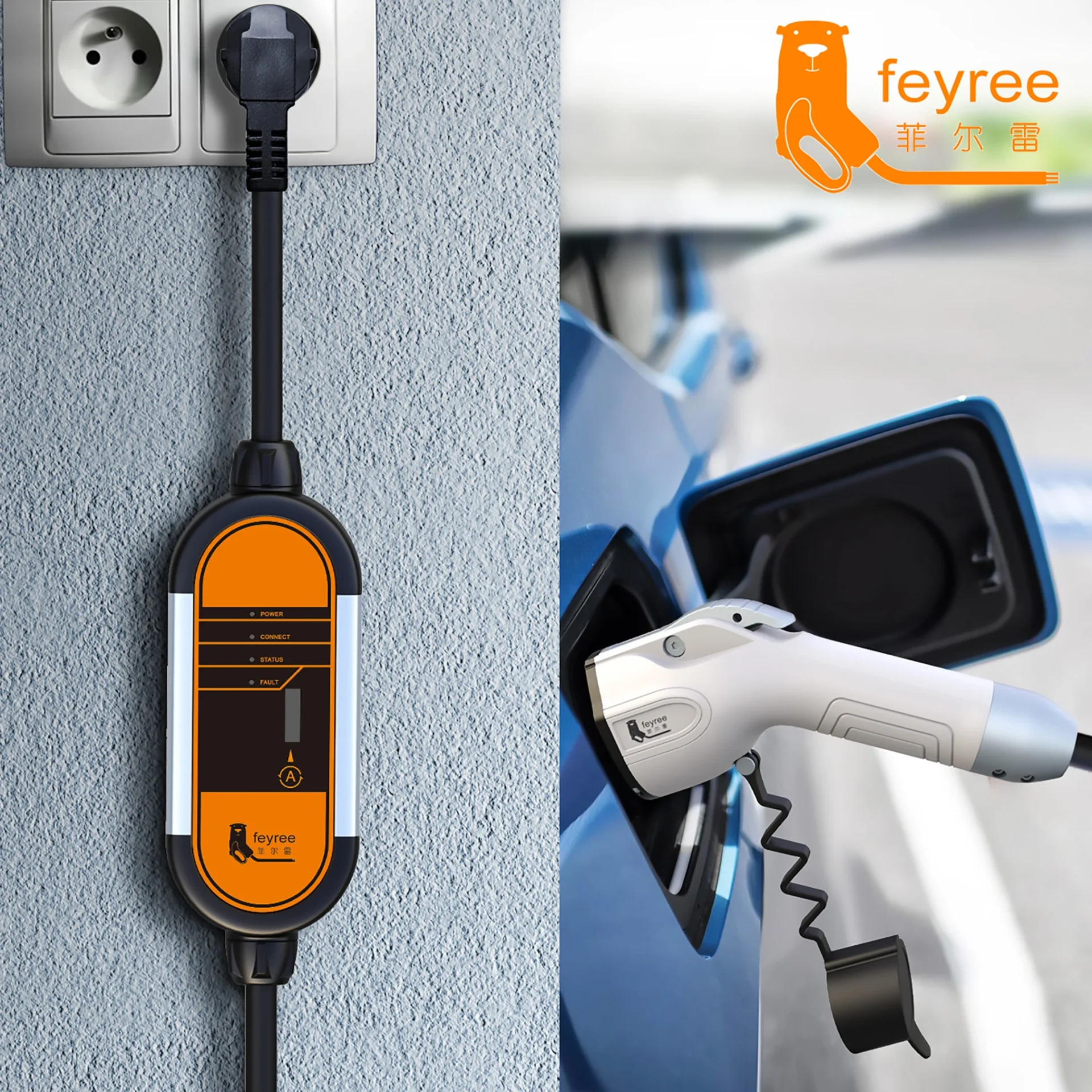

Quick & Easy Operation: When you are traveling or visiting relatives and friends, you don’t have to worry about charging, because our chargers can be carried with the car and you can check every charging data by OLED screen on the charger. All you need is just a 220 V ~250 V IEC 62196-2 outlet to connect. Simply connect the plug with the EV inlet, and then the charger will automatically detect the connection status and start charging, the parameters cannot be set in the charging state, please set before charging.

High Quality&Security: EV charger adopts High Strength PC material, which has better quality and high durability.It is rugged and robust, equipped with over-current protection, over-voltage protection, under-voltage protection, leakage protection, overheating protection, waterproof rating of IP55 and other safety protection measures. The indicating light on the charging station helps to show the various stages of charging and to warn of possible errors.

High Compatibility: Unlike normal EV chargers, our EV chargers are compatible with most electric cars, tested on leading EV models: Nissan LEAF, Tesla models, Toyota Prius Prime, BMW, and many more.Which meet IEC 62196-2 standard.

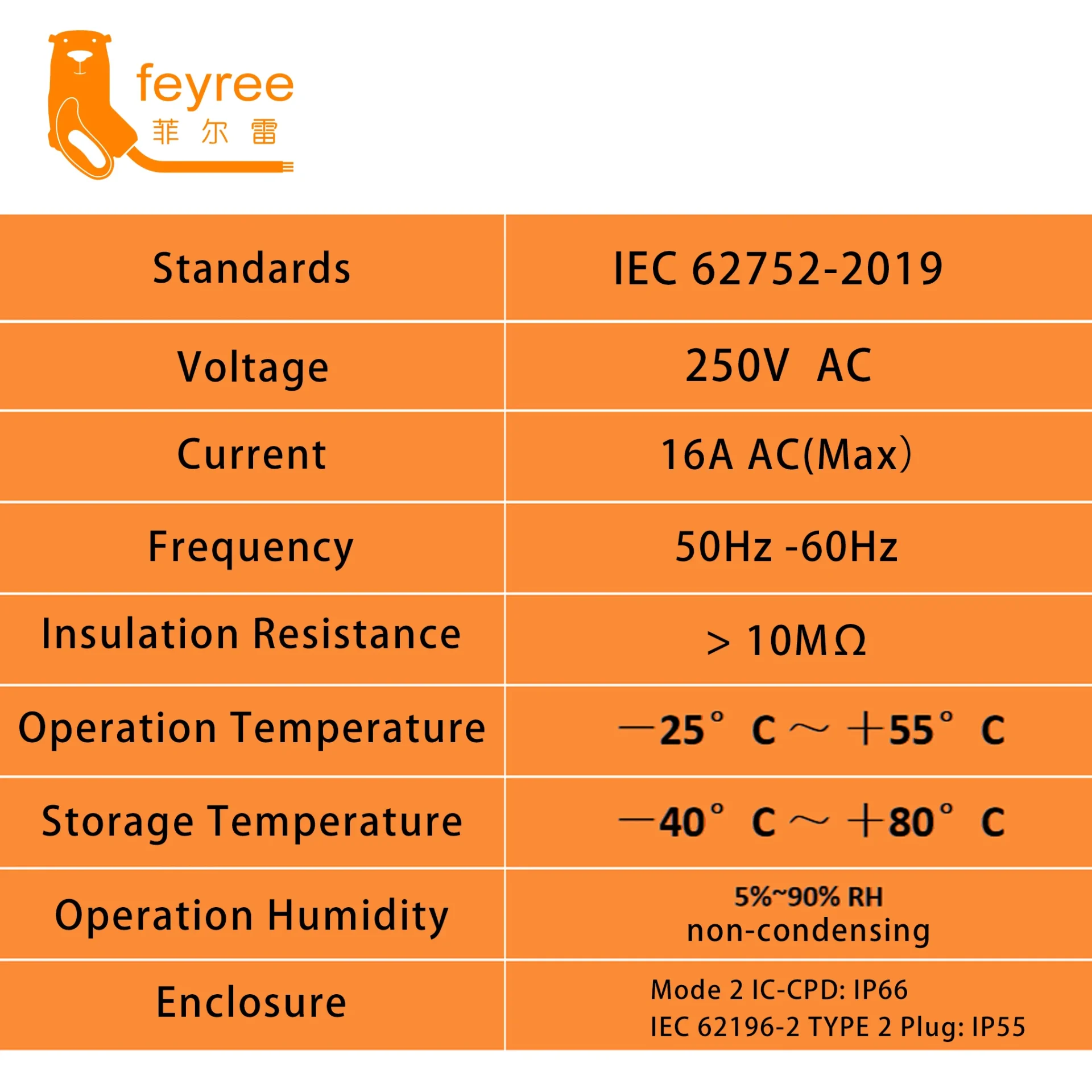

Main features:

1. Input power: 110V-240V

2. Charging current: 8/10A/13A/16A adjustable. (Use the same current to charge your car next time.)

3. Output power: 0-3.5KW

4. Protection level: IP65 (working state)

5. Mechanical life: plugging and unplugging>10000 times

6. External impact: can withstand 1m drop and 2t vehicle overpressure

7. Insulation resistance: >1000MD (DC500V)

8. Terminal temperature rise: <50K

9.Contact bushing: copper alloy, silver plated

10. Number of phases: single phase

11. Operating temperature: -25 °C ~ + 55 °C

12. Cable length: 5 meters

Highlights:

Aluminum alloy body: Provides excellent heat dissipation performance

TPU wire: wear-resisting

OLED display: Low temperature resistant environment

Control Box Function:

1. Leakage protection

2. Overvoltage or undervoltage protection

3. Overload protection

4. Lightning protection

5. Overheat protection

6. Change the current: 8A/10A/13A/16A

7. Simplex

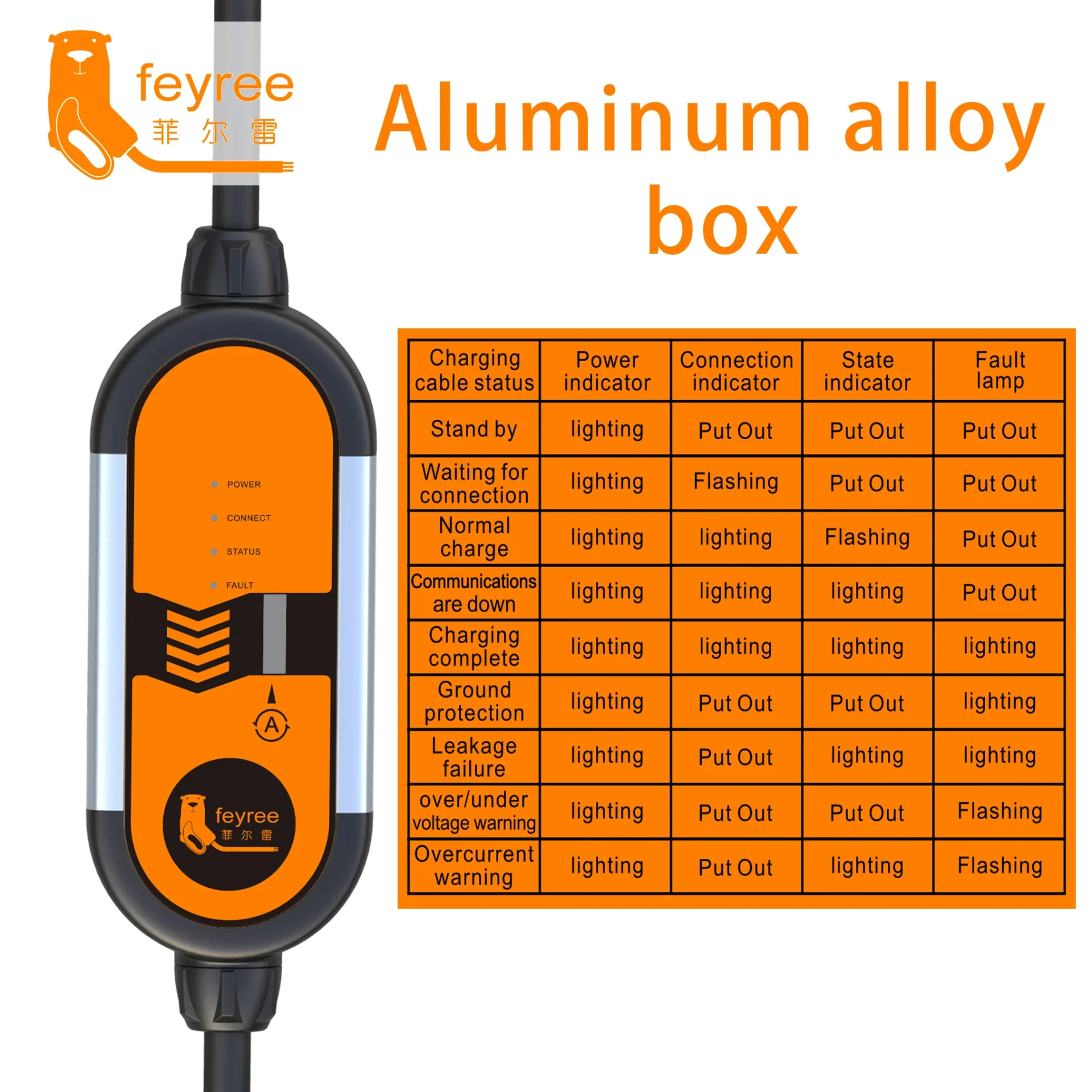

OLED Display:

1. Power indicator

2. Connection status

3. Charging indicator

4. Fault alarm

Packing List:

1. EV Charger *1

2. Portable Control Box*1

3. 5m Cable * 1

4. Profession handbag * 1

5. Schuko Plug *1

6. Charger holder*1 (Gift)
