Description
Backup Camera For Jeep Compass 2011-2015/Patriot 2007-2016

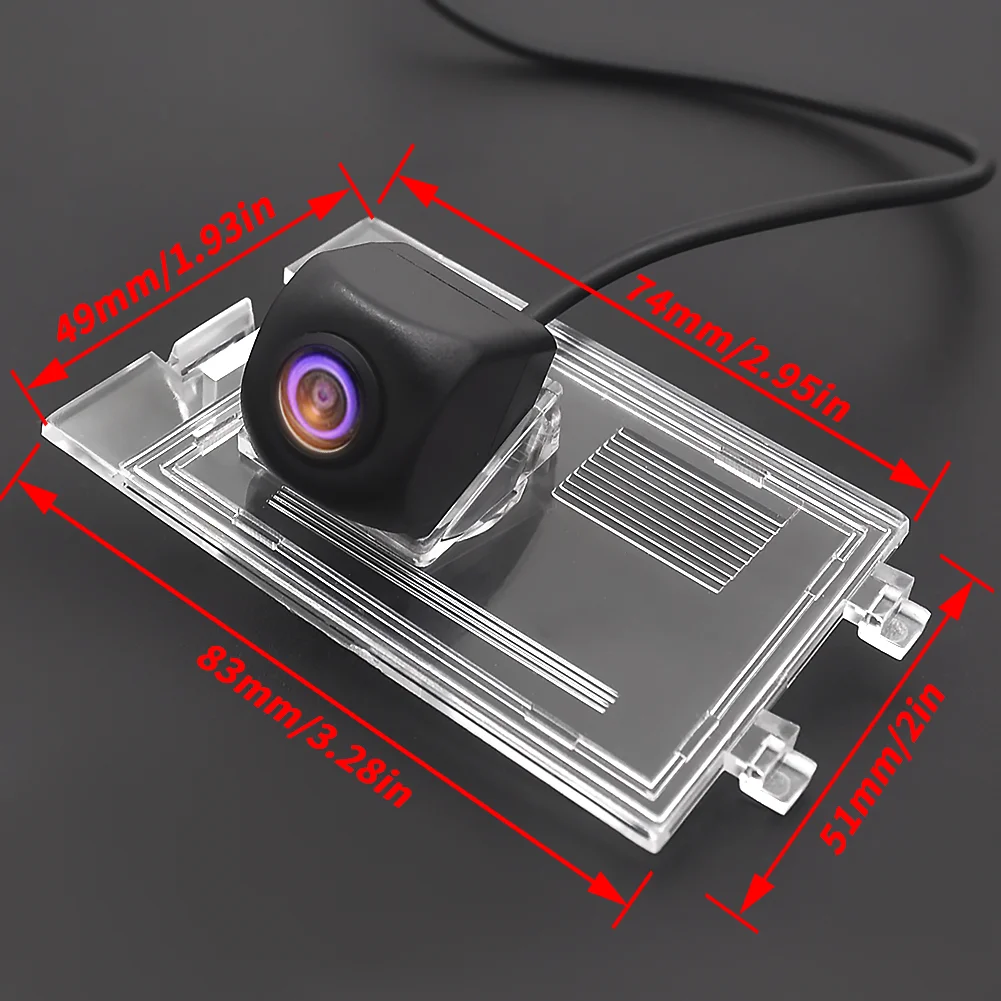

Tip: because there may be slight differences between cars produced in different countries, please check the size before buying:
Compatible with Car Model(s)：
for Jeep Compass 2011-2015 | Patriot 2007-2016
Specification：
| Sensor | 1/3″ color CMOS |
| Permission | 480 TV lines |
| Number of pixels | 648*488 |
| Physical size of the matrix | 3.63mm X 2.73mm |
| System | PAL/NTSC |
| Viewing angle | 170 degrees |
| Minimum lighting | 0.2 LUX |
| Waterproof | IP67 |
| Video output | 1Vp-p,75Ohm, RCA male |
| Signal/noise | >48dB |
| Working voltage | 12V DC |
| Storage temperature | -40°C+80°C |
| Working temperature | -30°C+70°C |
Top Starlight Night Vision
Starlight night vision function allows the camera to be used properly even at night.
Support Waterproof
The camera is filled with waterproof silicone, Effective chip protection,
IP68-Rated for Use in Extreme Conditions

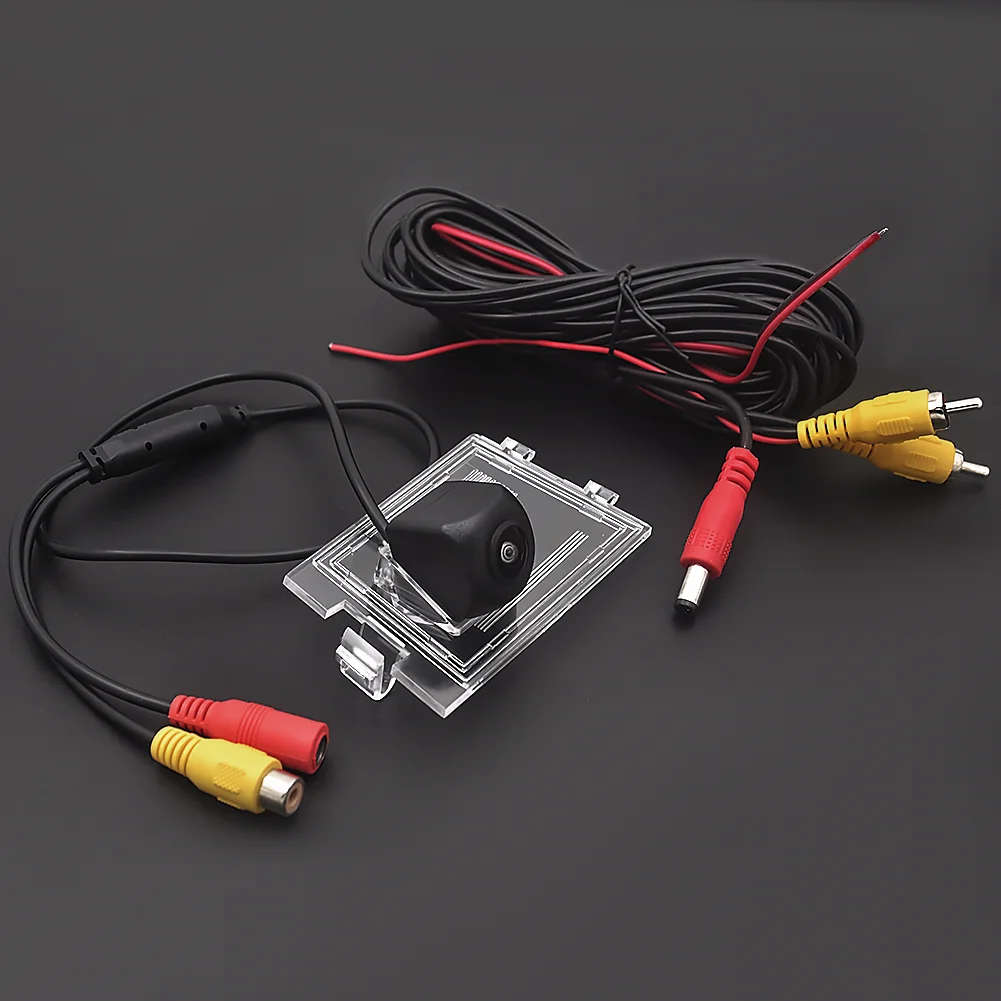

Pure Copper 6m Video Cable
Compared to copper-clad aluminium cables, data is transmitted in pure copper cables with less signal loss.
Integrated Step-down Module
Low power consumption, cable never hot, reduce fire risk.
